Name: 2023 Cushman Shuttle 4 ELiTE For Sale
SKU: GOLF372
Availability: InStock

Description
Reviews (0)

Description

Condition: New

Make: Cushman

Model: Shuttle 4 ELiTE

Power Type: Electric

Seating Capacity: Not Specified

Stock #: 3606147

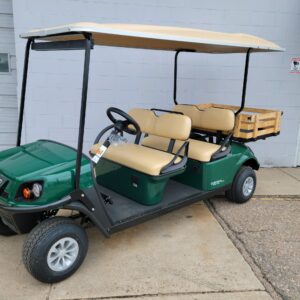

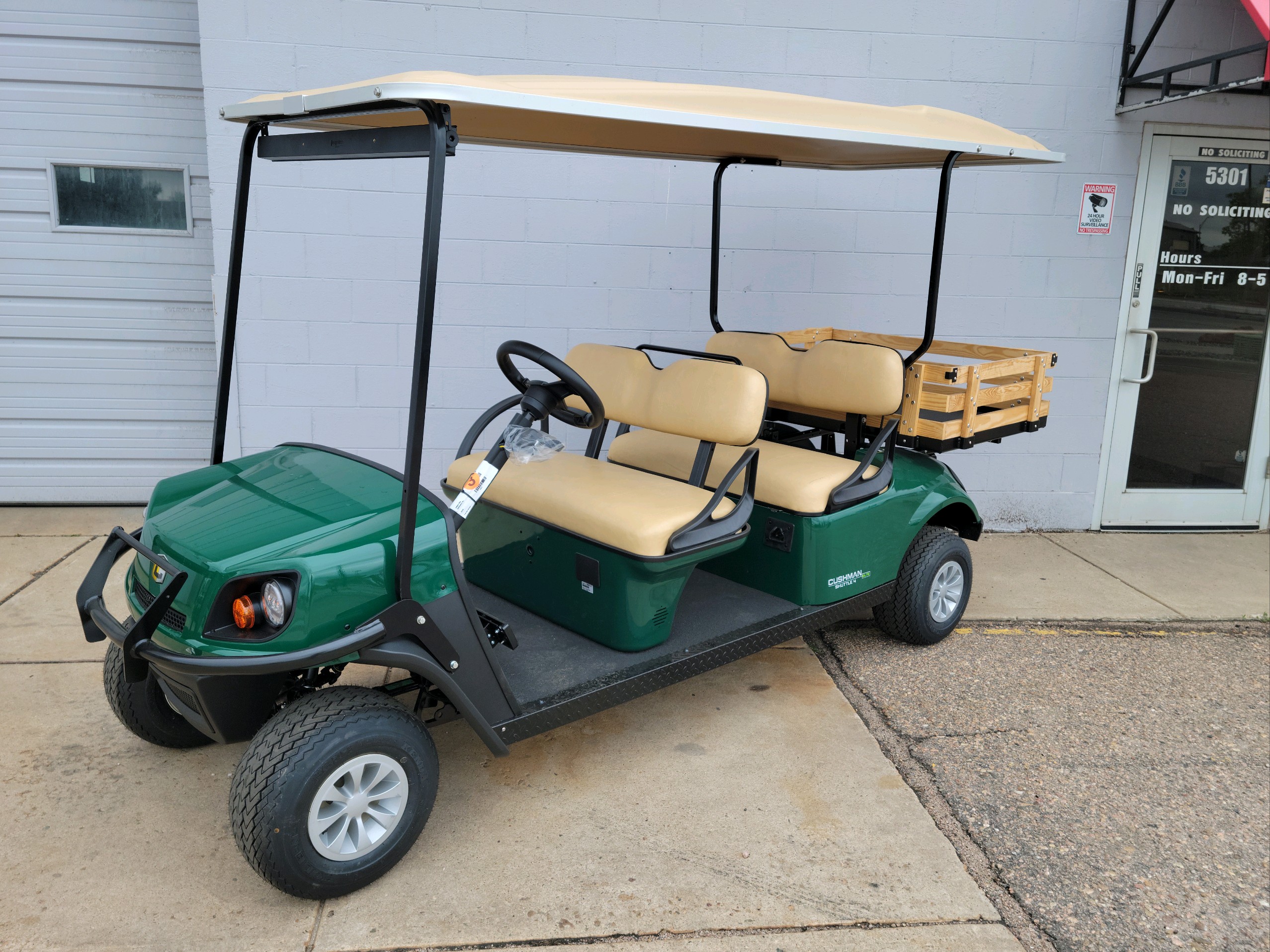

2023 Cushman Shuttle S4 Elite, Forsest Green with twin 4.2 lithium battery pack, beige seats, 116″ Beige top, headlights, brake lights, and turn signals. Horsepower: 13.1 HP (9.8) kW Peak
Front Suspension: Leaf Springs w/ Hydraulic Shock Absorbers
Rear Suspension: Leaf Springs w/ Hydraulic Shock Absorbers
Front Tires: 18 x 8.50 – 8 (4 Ply Rated)
Rear Tires: 18 x 8.50 – 8 (4 Ply Rated)
Frame Type: Welded Steel w/ DuraShield™ Powder Coat
Top Speed: 14.9 mph ± 0.5 mph (24.0 kph ± 0.8 kph) (High Speed) 12 mph ± 0.5 mph (19.3 kph ± 0.8 kph) (Low Speed)
Passenger Capacity: 4-Person
Colors: Standard: Patriot Blue

Description

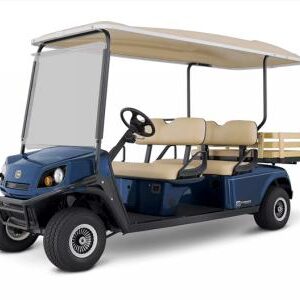

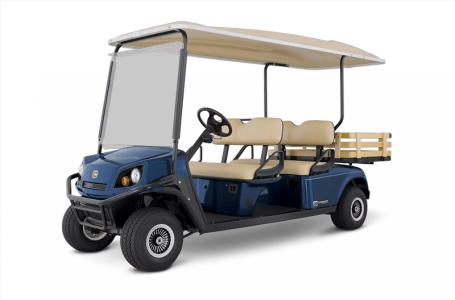

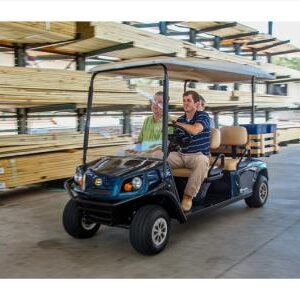

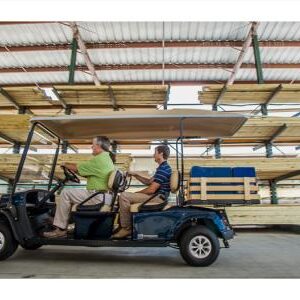

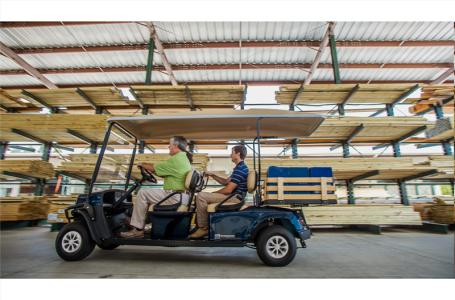

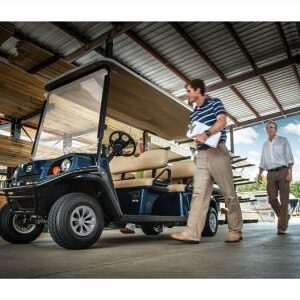

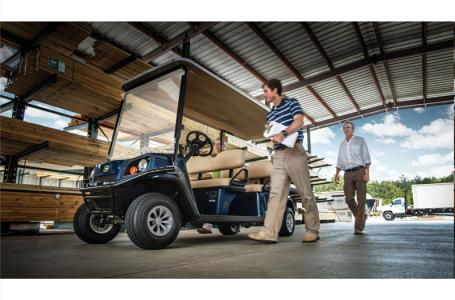

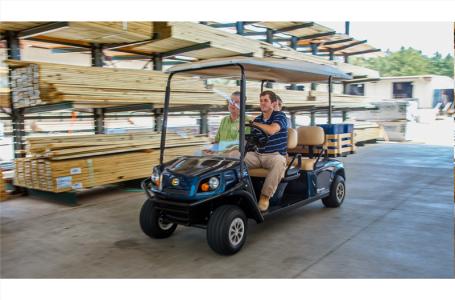

Specifically designed to multi-task, the Shuttle 4 combines four forward-facing seats and a spacious cargo bed, ready to transport people and equipment from every corner of the facility. Available with ELiTE lithium powered by Samsung SDI Technology or a fuel-efficient 13.5 hp EFI gas engine, the Shuttle 4 is essential for day-in and day-out operations. 2023 Cushman Shuttle 4 ELiTE For Sale

Features

9-CU-Ft Cargo Bed: Safely transport up to 400 lbs. of cargo in the standard bed with wood stake sides.
Standard Brush Guard And Headlights: Protect the front end of your vehicle with a standard brush guard and increase visibility with standard headlights.
Automatic Parking Brake: Now standard on ELiTE vehicles, experience superior efficiency with an automatic parking brake. Only offered with electric powertrains.
Limited Slip Differential: Experience a smoother and safer ride with a limited slip differential (now standard for ELiTE models only), giving you more concentrated traction and peace of mind in any situation.

Body & Chassis

Frame: Welded Steel w/ DuraShield™ Powder Coat
Body & Finish: Injection Molded TPO (Front) Steel Base Coat/Clear Coat (Rear)
Standard Color: Patriot Blue

Dimensions

Overall Length: 133.5 in (339 cm)
Overall Width: 48.5 in (123 cm)
Overall Height: 48.6 in (123 cm) (w/o Roof) / 72.0 in (183 cm) (w/ Struts & Roof)
Wheel Base: 93.5 in (237 cm)
Wheel Track: 34.2 in (87 cm) Front / 38.0 in (97 cm) Rear
Ground Clearance: 4.3 in (11 cm)
Cargo Deck Capacity: 9 cu ft (.25 m3)
Cargo Deck Material: Wood Stake Side

Power

Power Source: 56V AC
Horsepower (Kw): 13.1 HP (9.8) kW Peak
Electrical System: 56 Volt
Battery (Qty/Type): Three Lithium Ion 56 Volt
Battery Charger: 56VDC, 120/230 VAC, UL/CSA, CE
Key Or Pedal Start: Pedal
Speed Controller: 300 Amp AC
Drive Train: Motor Shaft Direct Drive
Transaxle: Limited Slip Differential
Gear Selection: Dash-Mounted Forward-Neutral-Reverse
Rear Axle Ratio: 17:01

Performance

Seating Capacity: 4-Person
Weight W/O Batteries: 926 lb (420 kg)
Curb Weight: 1026 lb (484 kg)
Vehicle Load Capacity: 1200 lb (544 kg)
Bed Load Capacity: 400 lb (181 kg)
Outside Clearance Circle: 400 lb (181 kg)
Speed: 14.9 mph ± 0.5 mph (24.0 kph ± 0.8 kph) (High Speed) 12 mph ± 0.5 mph (19.3 kph ± 0.8 kph) (Low Speed)

Steering & Suspension

Steering: Self-Compensating Rack & Pinion
Suspension: Leaf Springs w/ Hydraulic Shock Absorbers
Service Brake: Rear Wheel Mechanical, Self-Adjusting Drum
Parking Brake: Automatic, Electromagnetic
Tires: 18 x 8.50 – 8 (4 Ply Rated)

Engine

Horsepower	13.1 HP (9.8) kW Peak

Chassis

Front Suspension	Leaf Springs w/ Hydraulic Shock Absorbers
Rear Suspension	Leaf Springs w/ Hydraulic Shock Absorbers
Front Tires	18 x 8.50 – 8 (4 Ply Rated)
Rear Tires	18 x 8.50 – 8 (4 Ply Rated)
Frame Type	Welded Steel w/ DuraShield™ Powder Coat
