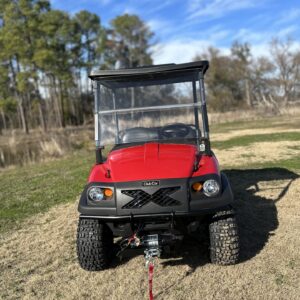

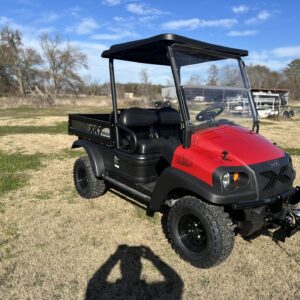

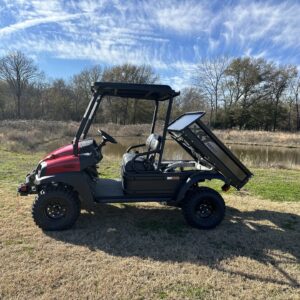

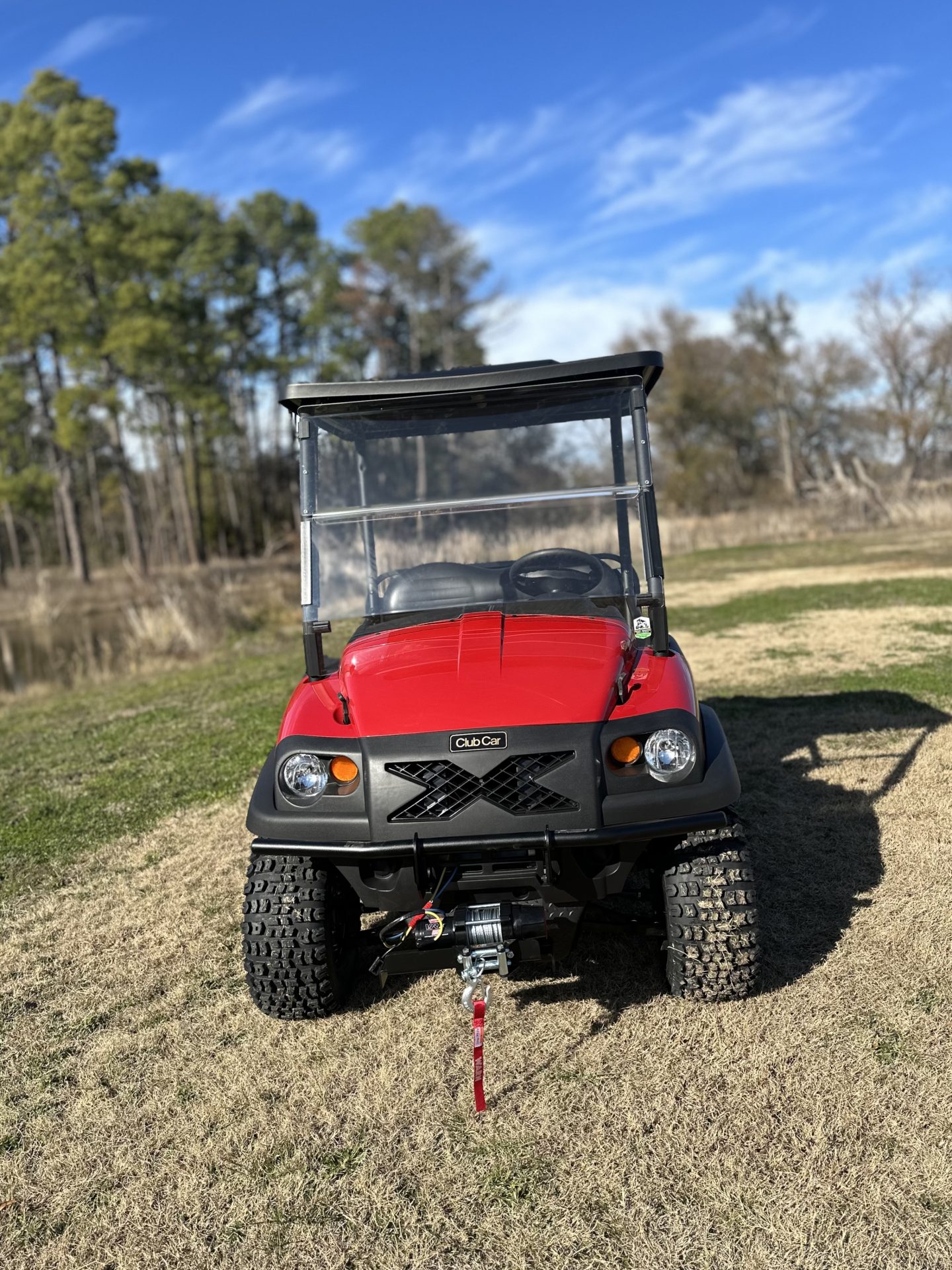

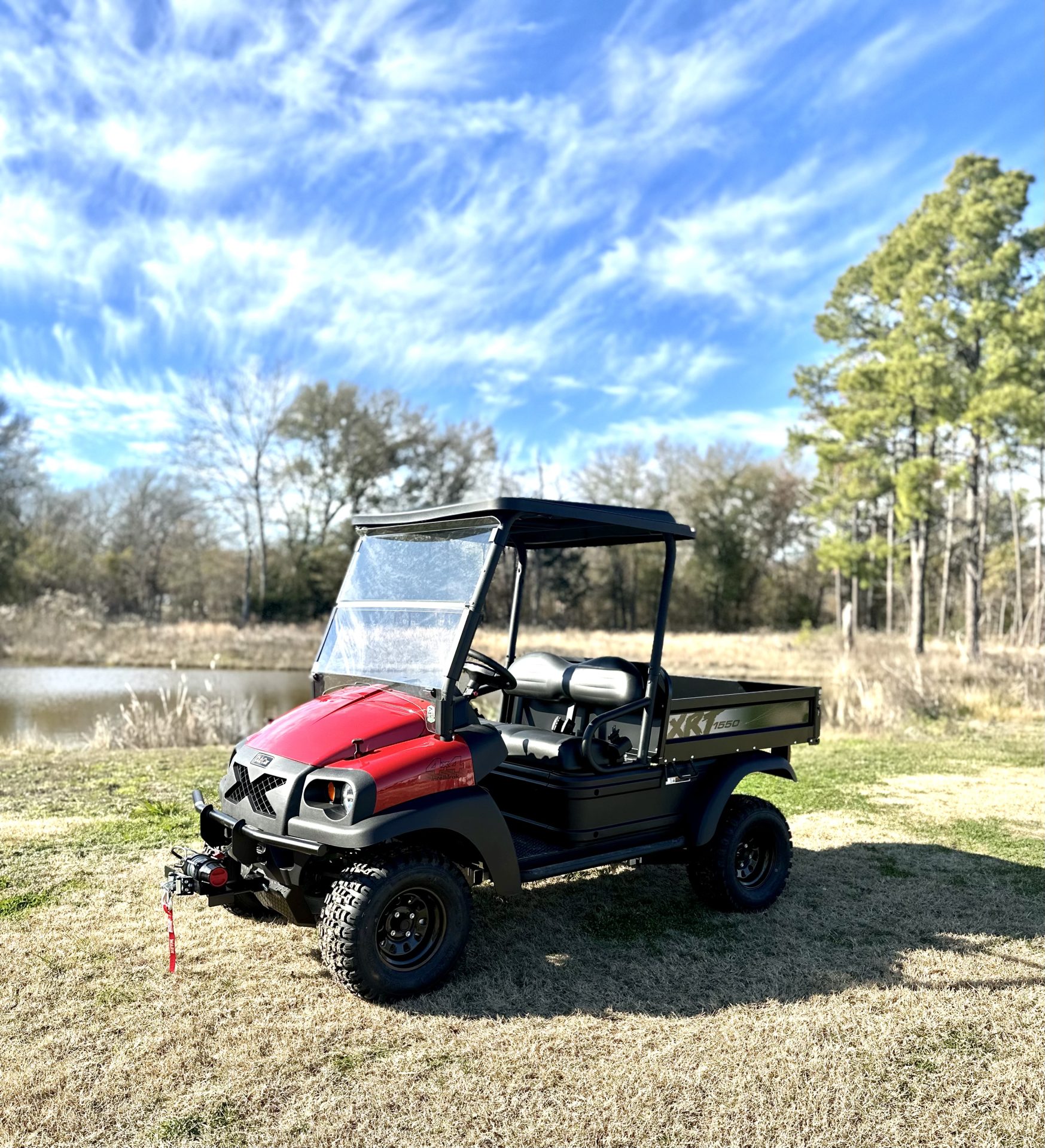

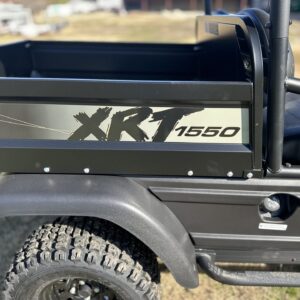

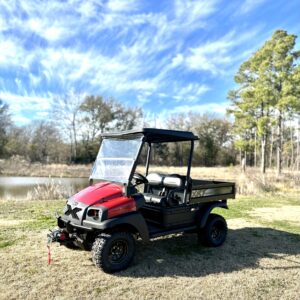

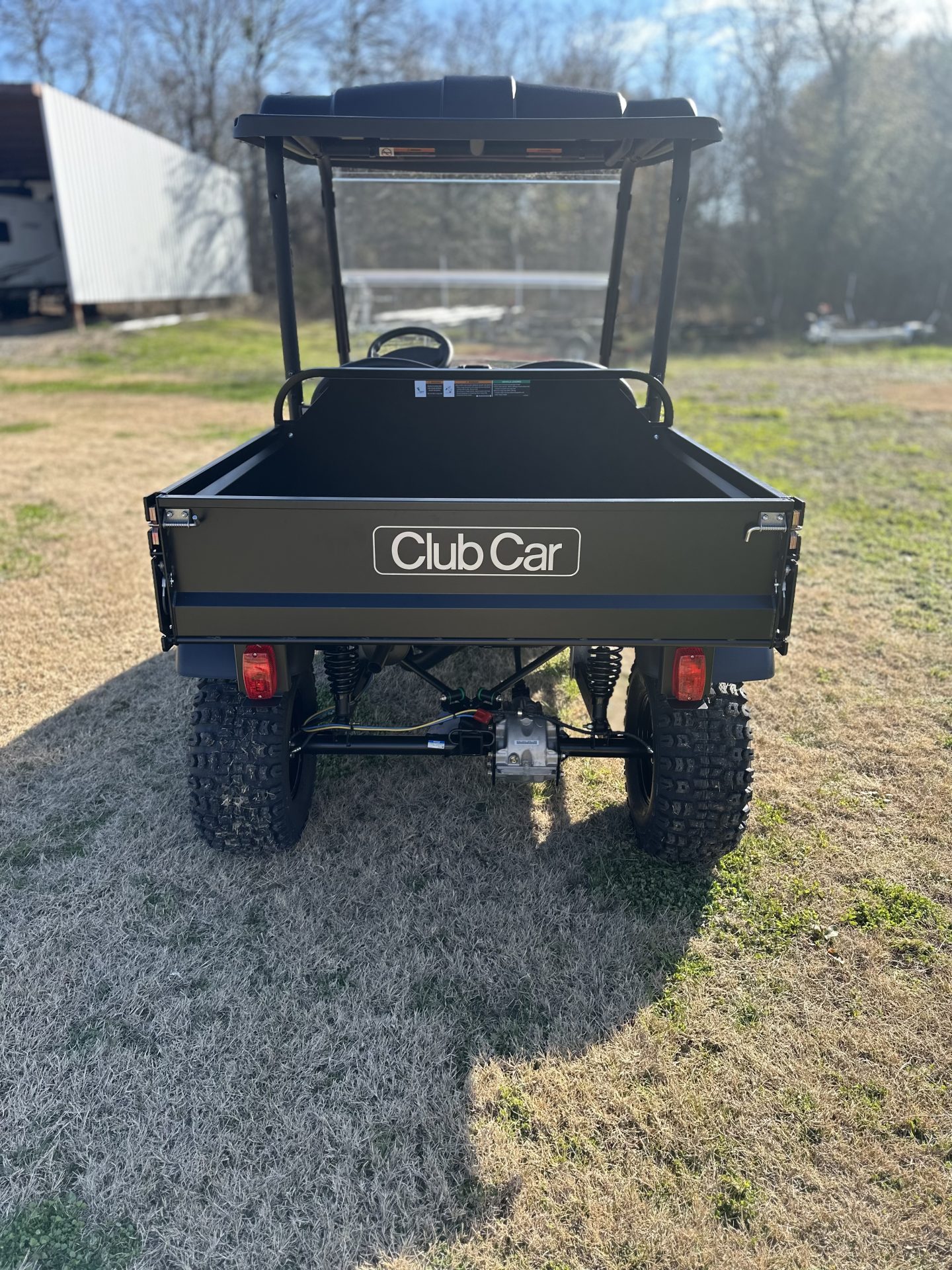

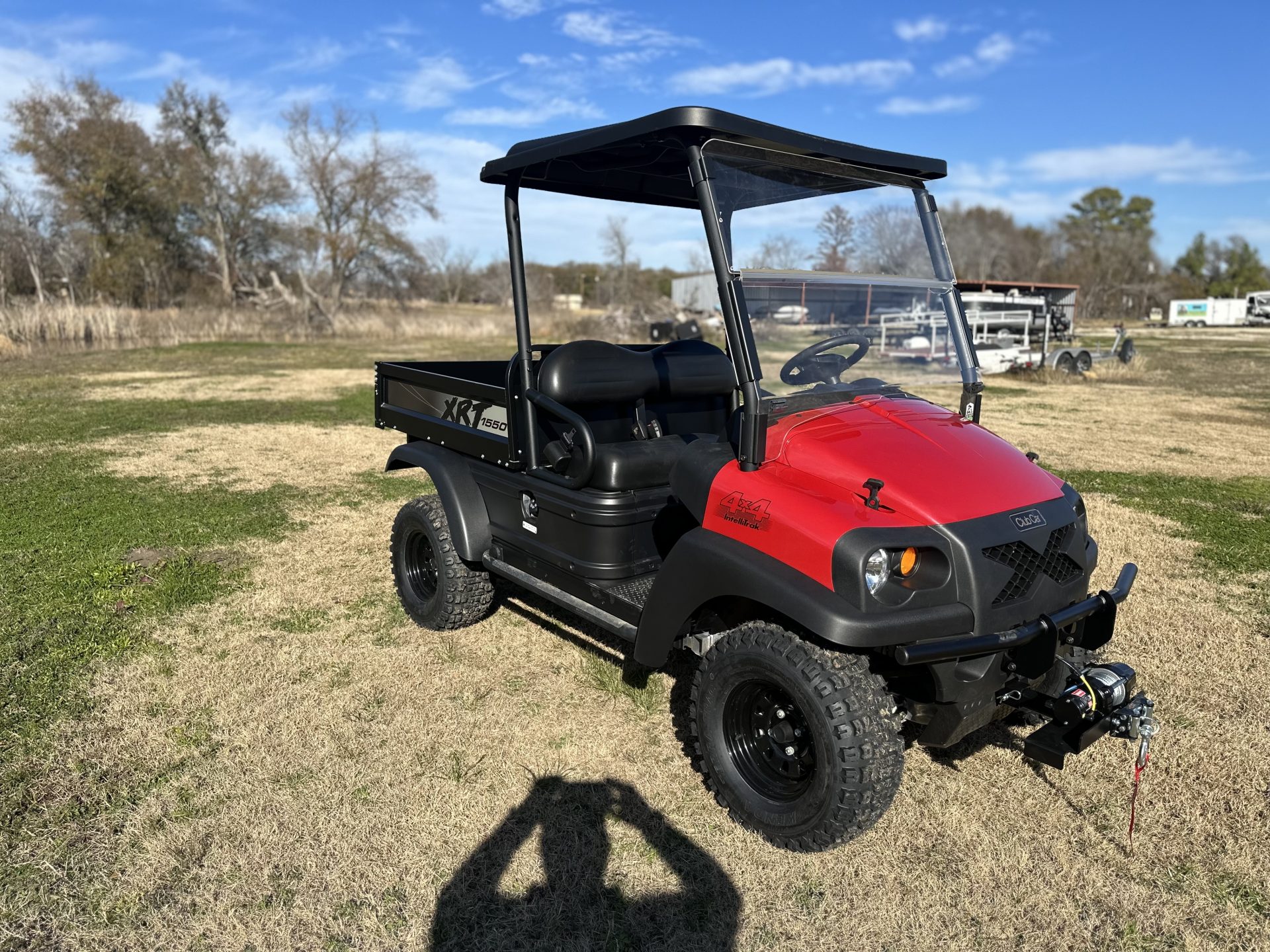

Name: 2024 Club Car XRT 1550 For Sale
SKU: GOLF356
Availability: InStock

Description
Reviews (0)

Description

Condition: New

Year: 2024

Make: Club Car

Model: XRT 15502024 Club Car XRT 1550 For Sale

Power Type: Gas

Seating Capacity: 2 Passenger

Location:

Tool, TX 75143

Price: $15,900

Premium Seats

LED Light Bar

Premium Windshield

ECO SOUND BAR

Specification:

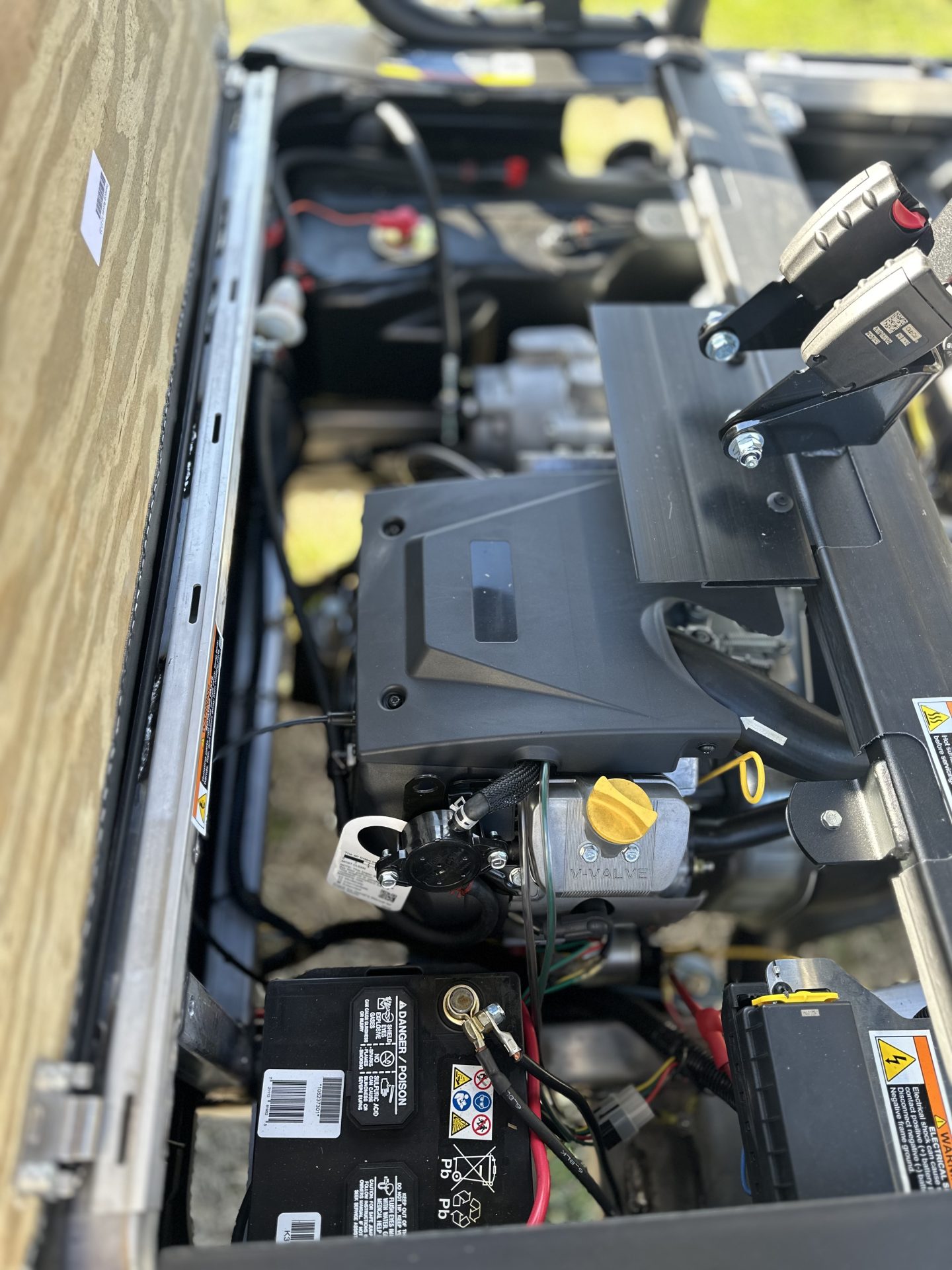

ENGINE Kawasaki 4-cycle, industrial grade

CYLINDERS Twin

VALVING Overhead Valve

COOLING Air Cooled

HORSEPOWER 20.1 hp (15.0 kW) rated @ 3400 RPM per SAE J1349

MAX TORQUE 36.5 ft-lb (49.5 N-m)

GOVERNOR Automatic ground speed sensing

FUEL DELIVERY SYSTEM Carburetor

FUEL CAPACITY 6.5 gal (24.6 L)

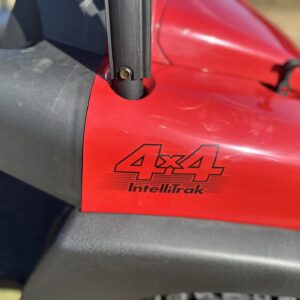

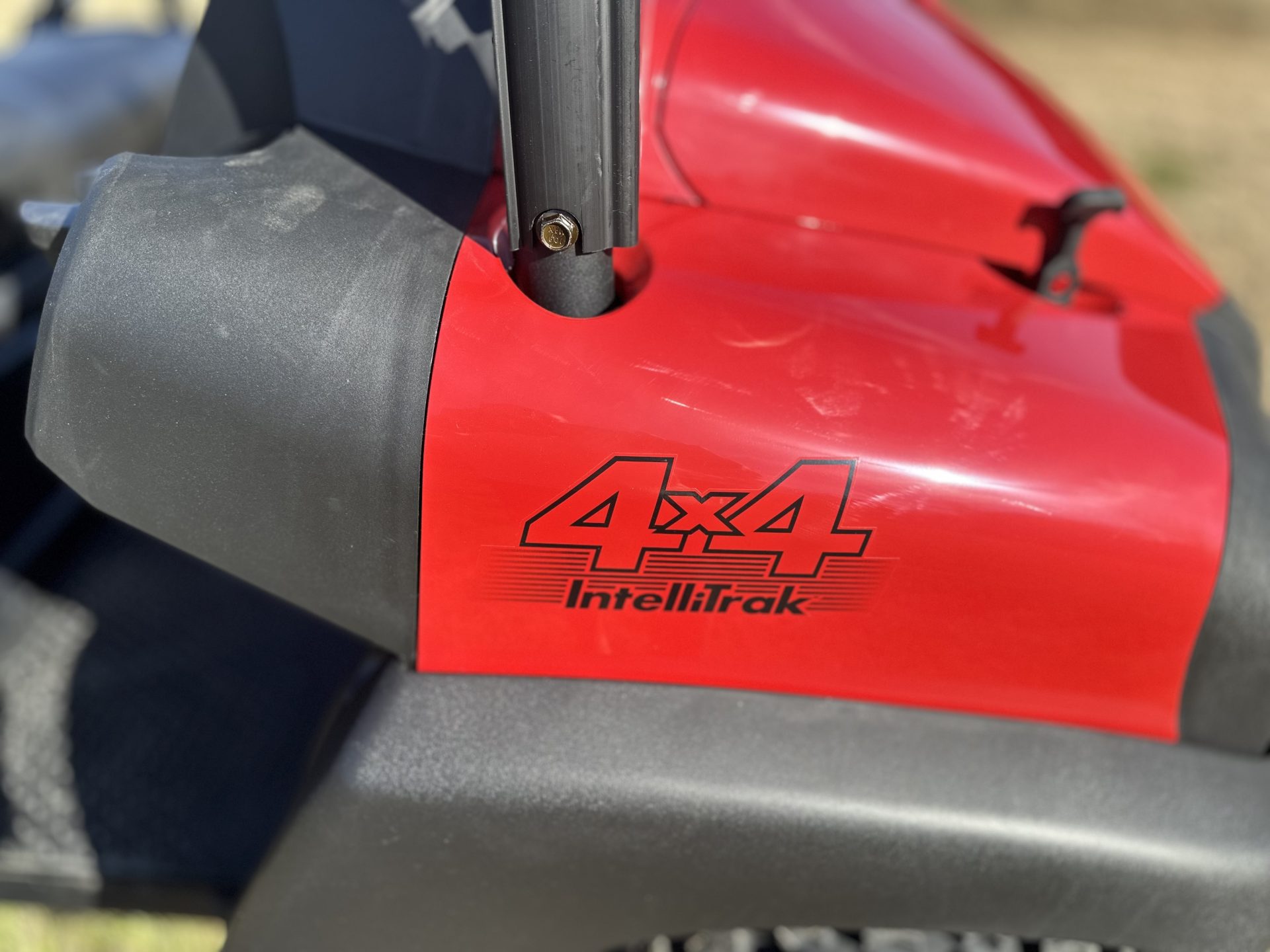

TRANSMISSION Continuously Variable Transmission (CVT) with IntelliTrak Automatic 4-Wheel Drive

GEAR SELECTION Forward/Neutral/Reverse

BATTERY 12-volt 500 CCA; 105 min Reserve capacity

HEADLIGHTS Two 55 Watt Halogen

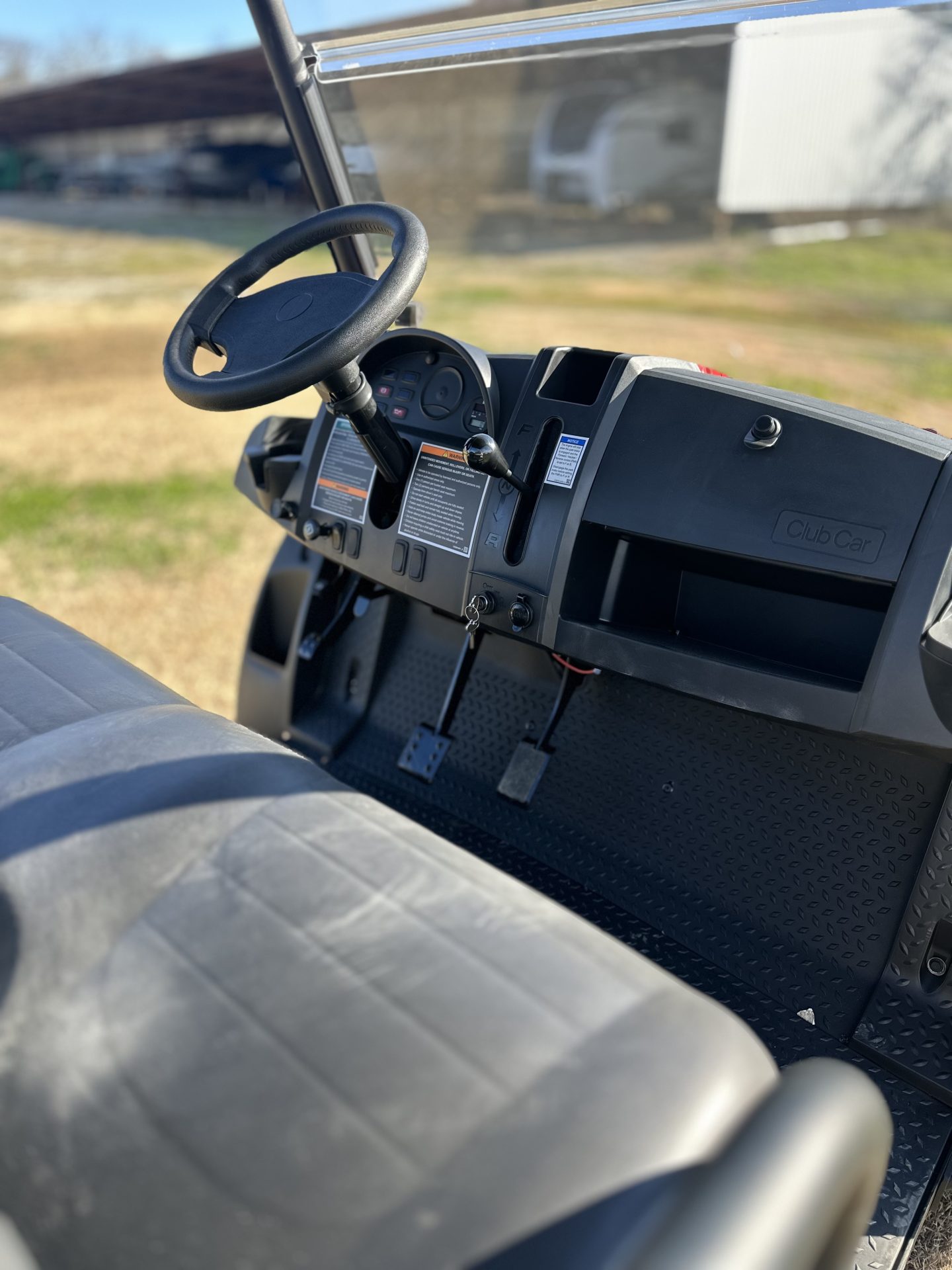

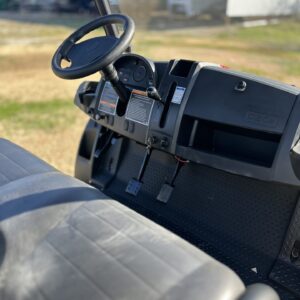

STEERING Self-adjusting Rack and Pinion with Adjustable Tilt

SUSPENSION (FRONT) Independent double A-arms with coil-over shocks

SUSPENSION (REAR) Semi-independent 4-Link suspension with coil over shocks

BRAKES Twin piston, hydraulic disc (front); Single piston, hydraulic disc (rear)

PARK BRAKE Foot-pedal activated, Mechanical2024 Club Car XRT 1550 For Sale disc

TIRES (FRONT) 25 x 10.5-12, 6-ply rated, Mud Tire

TIRES (REAR) 25 x 10.5-12, 6-ply rated, Mud Tire

BODY (FRONT & FINISH) GE Geloy high-impact, scratch-resistant, injection molded color with Automotive finish

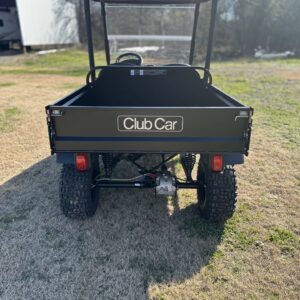

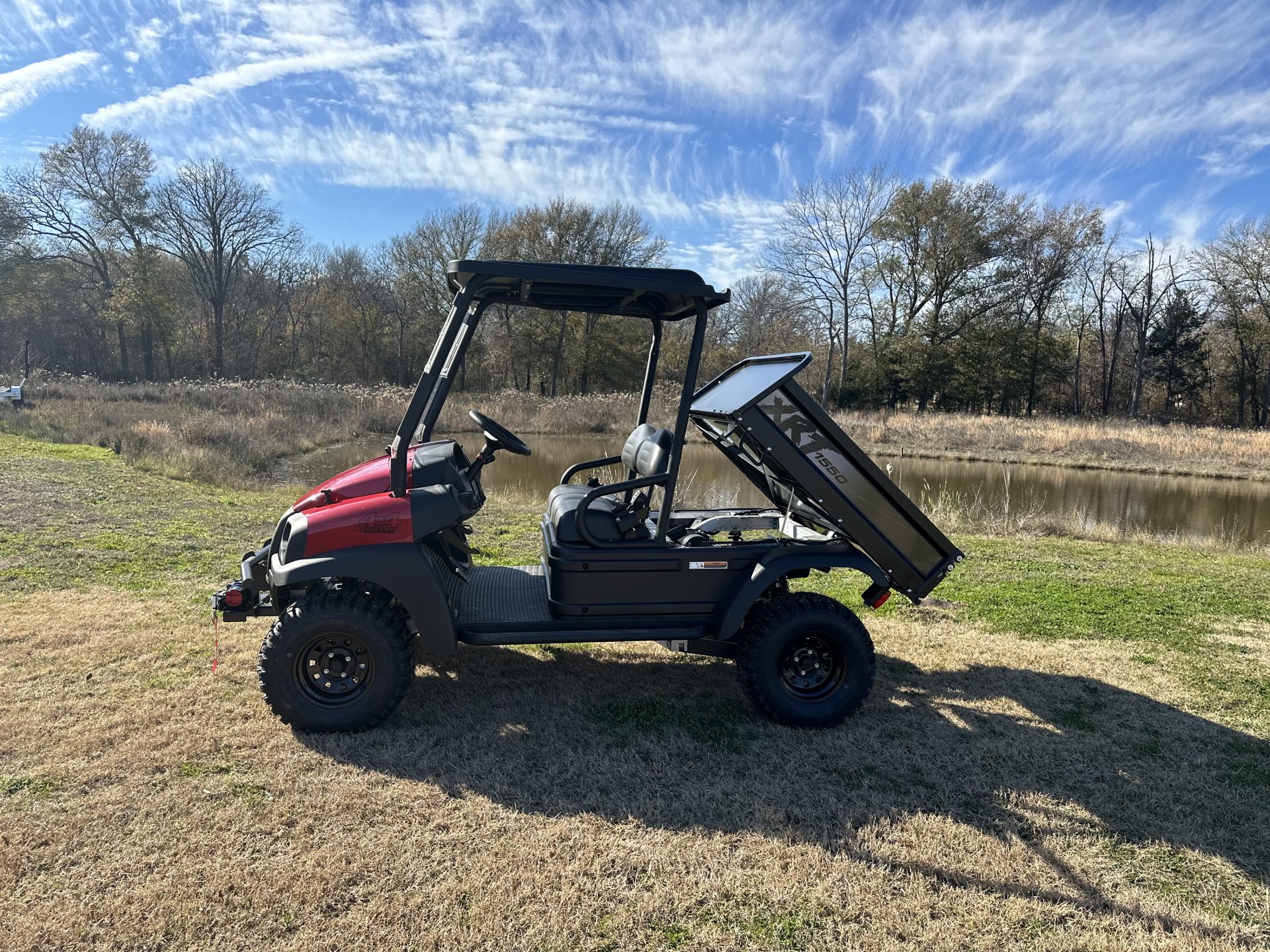

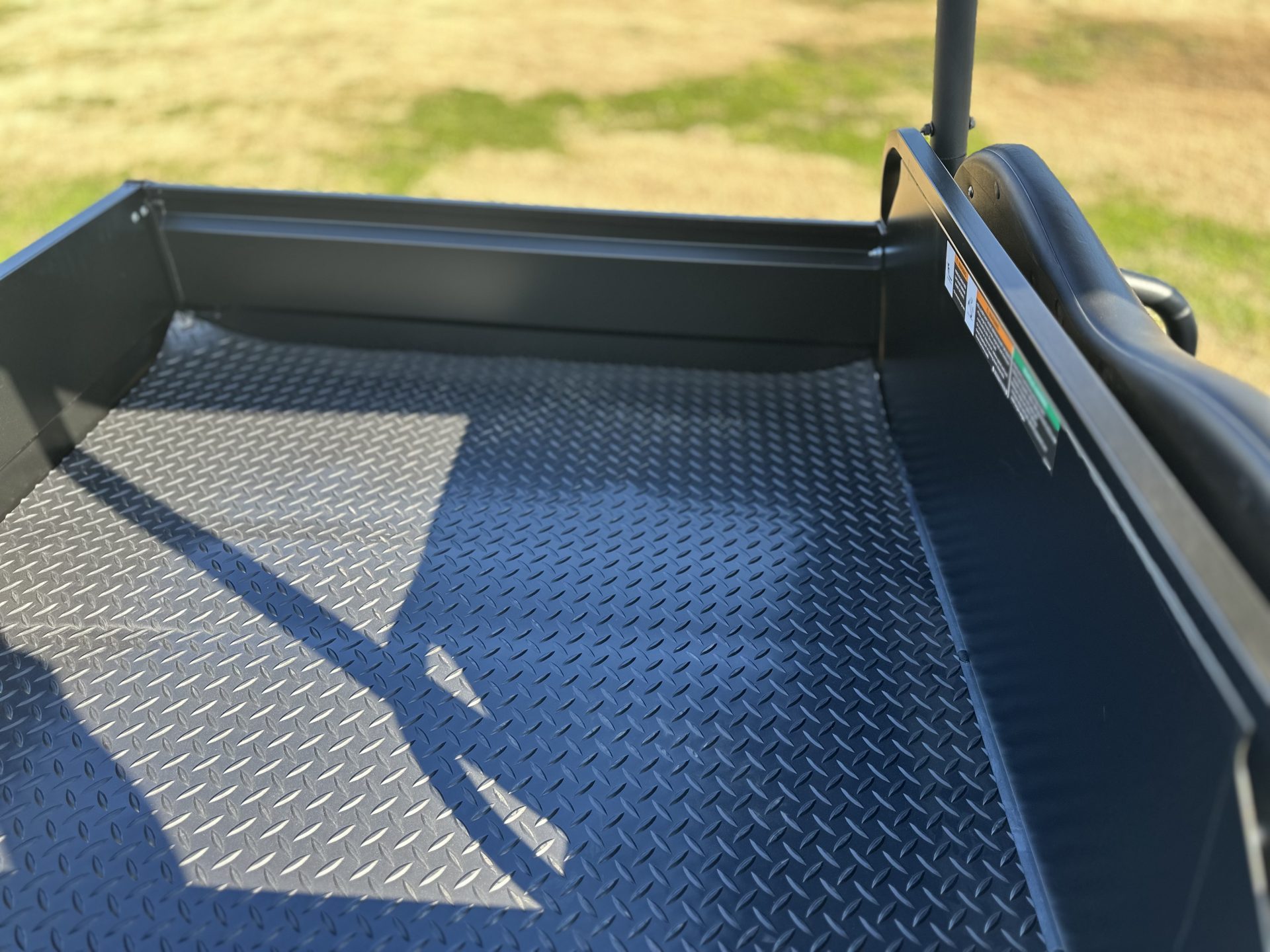

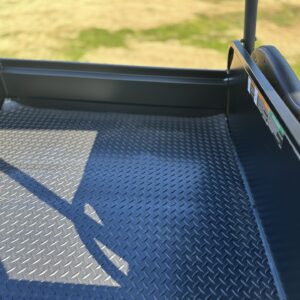

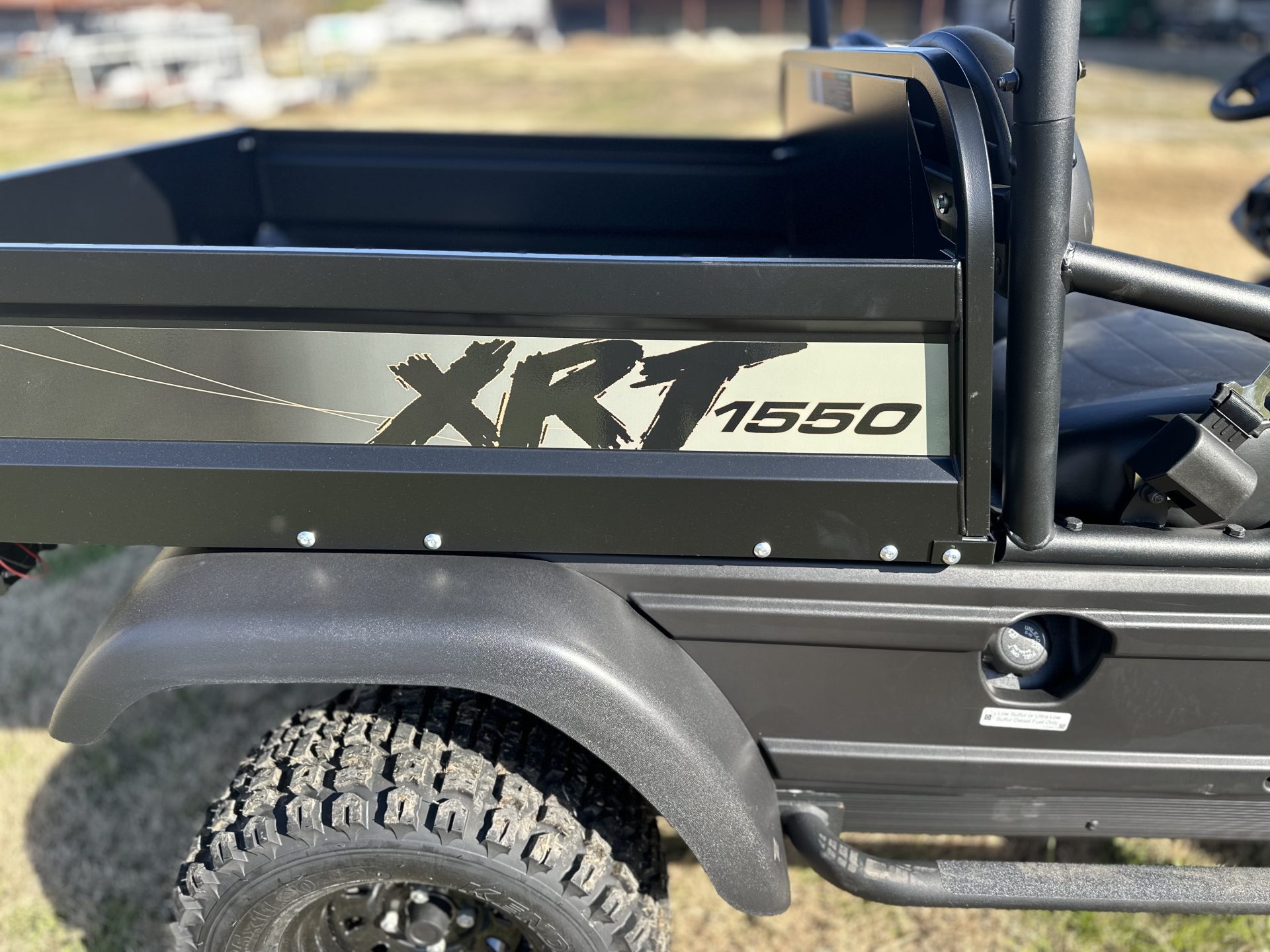

CARGO BED LxWxH 48.0 x 49.8 x 10.9 in (122 x 127 x 28 cm)

BED LOAD CAPACITY 800 lb (363 kg) – Standard; 1050 lb (476 kg) w/ HD Suspension

TOTAL VEHICLE CAPACITY 1,200 lb (544 kg) – Standard; 1,450 lbs (658 kg) with HD suspension

TOWING CAPACITY 2,000 lb (907.2 kg)

Specifications

General Information

Manufacturer

Club Car

Model Year

2024

Model

XRT 1550 Diesel

Model Code

Color

Dark Green

Brakes/Wheels/Tires

Brakes

Front – Twin piston, hydraulic disc

Rear – Single piston, hydraulic disc

Park – Foot-pedal activated, Mechanical disc

Tires

Front / Rear – All-terrain, 25 x 10.5 – 12, 4-ply

Dimensions

Length

Overall – 125 in. (309.9 cm)

Height

82.3 in. (209 cm)

Width

Max without mirrors – 58.5 in. (148.5 cm)

Front track / Rear track – 48.8 in. (124 cm)

Weight

Vehicle – 1,550 lb. (703 kg)

Ground Clearance

8.2 in. (20.8 cm)

Wheelbase

81.5 in. (207 cm)

Turning Radius

11.5 ft. (3.5 m)

Drivetrain

Transmission

Continuously variable transmission (CVT) with IntelliTrak automatic 4-wheel drive

Gear selection – Forward / Neutral / Reverse

Drive System

IntelliTrack automatic 4 x 4

Electrical

Battery

12V 500 CCA 105 min. Reserve

Lighting

Headlight – Two 55W halogen

Engine

Kubota D722, industrial grade

Valving – Overhead valve

Governor – Automatic ground speed sensing

Cooling

Liquid

Cylinders

Horsepower

20.0 hp (15.0 kW) rated @ 3,600 rpm perSAE J1995

Displacement

719 cc

Torque

Max – 33 ft. lb. (45 Nm)

Gear Ratio

Forward – 5.39:1

Reverse – 7.79:1

Differential – 3.3:1

Fuel System

Delivery – Mechanical injection

Ignition

Compression

Lubrication

Pressure

Oil filter – Spin-on

Fuel Type

Diesel

Fuel Capacity

6.5 gal. (24.6 l)

Operational

Frame

Front and finish body – GE Geloy high-impact, scratch-resistant, injection molded color, Automotive finish

Rear body – Molded plastic over aluminum

Front Suspension

Independent double A-arms with coil-over shocks

Rear Suspension

Semi-independent, 4-link solid axle

Steering

Rack and pinion with tilt

Speed – Forward

25 mph (40 km/h)

Seating

Other

Additional Colors

Red

Dark Green

Cargo Box Length

48 in. (122 cm)

Cargo Box Height

10.9 in. (28 cm)

Cargo Box Width

49.8 in. (128 cm)

Cargo Box Capacity

Cargo box payload standard – 800 lb. (363 kg)

Cargo box payload HD suspension – 1,050 lb. (476 kg)

Load Capacity

Total payload standard – 1,200 lb. (544 kg)

Total payload HD suspension – 1,450 lb. (658 kg)

Combination rated capacity standard – 2,500 lb. (1,134 kg)

Combination rated capacity with HD suspension – 2,750 lb. (1,247.4 kg)

Towing Capacity

2,000 lb. (907.2 kg)

Warranty

Powertrain – 2-year or 2,000-hour limited

Vehicle – 1-year or 1,000-hour limited
